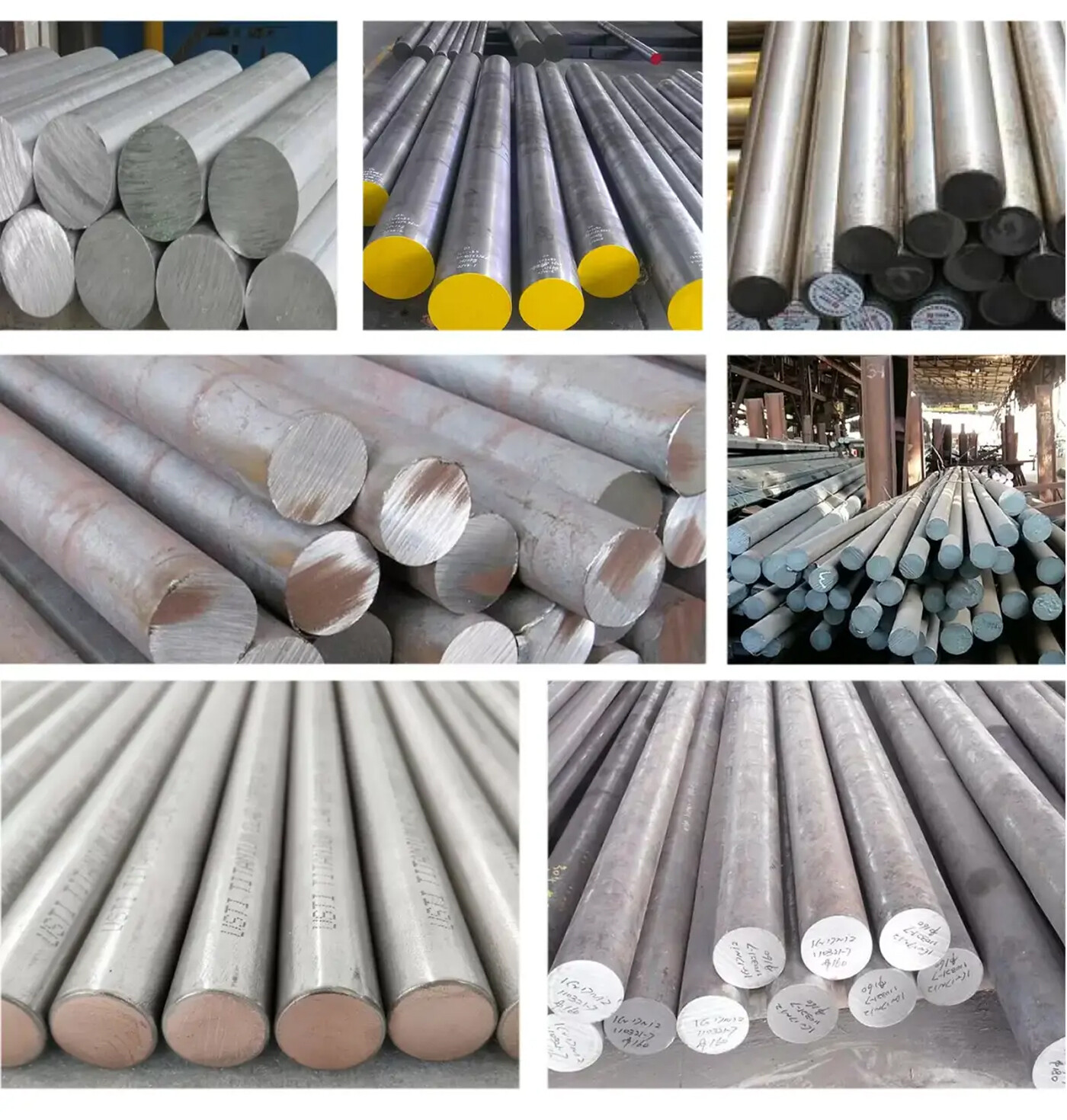

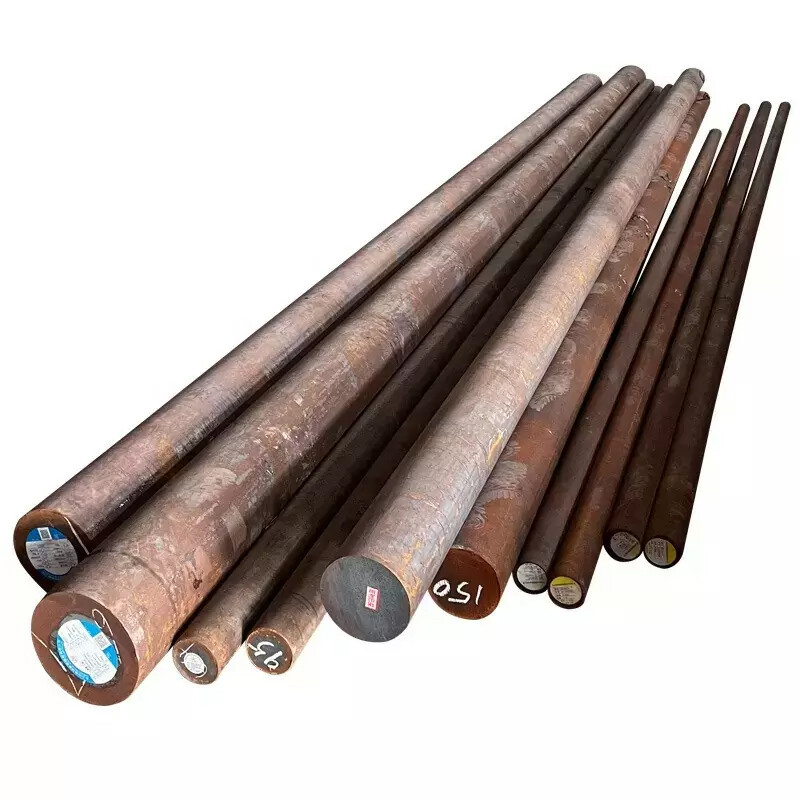

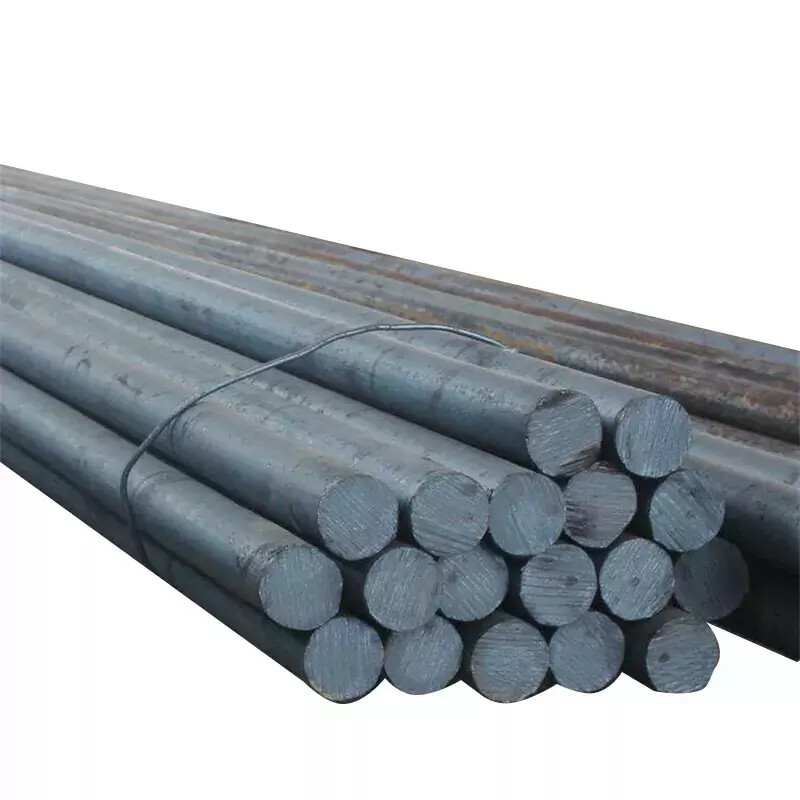

Q235B Carbon steel bar/rod

Q235B Carbon steel bar/rod
Tolerance: +0.5mm/-0(dia),+5mm/-0(L)
Heat treatment: Normalized / Annealed / Quenched / tempered
Surface: black,mill,polished,brush,etc
Test: Ultrasonic test according to SEP 1921-84 G3 C/c
Application: Widely used in construction industry for reinforcing concret(Express way; office building, Bridge etc) Trasportation By sea(20' 40' container), parts of larger cross-sections, crankshafts, gears.

Request A Quote

PRODUCT DESCRIPTION

Round steel is a long strip of steel with a solid cross section. Its specifications are expressed in millimeters in diameter. They are divided into three types: hot-rolled, forged, and cold-drawn. The hot-rolled specifications are 5.5-250 mm. They are often used as steel bars, bolts, and various Mechanical parts, round steel larger than 25 mm is mainly used to manufacture mechanical parts and seamless steel tube billets.

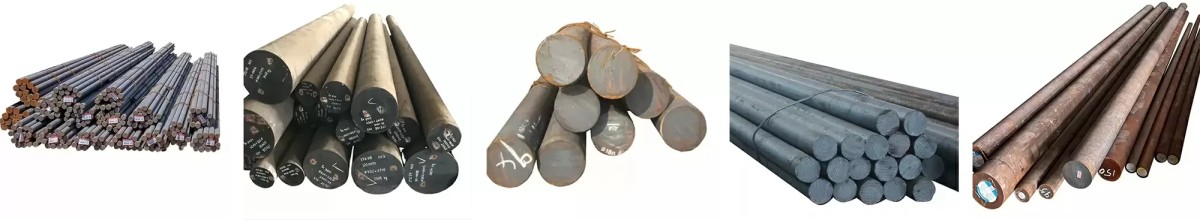

Carbon steel rod.jpg

Product Namecarbon steel round bar
Place of OriginShandong, China
StandardAiSi, ASTM, bs, DIN, GB, JIS
GradeHRB335/HRB400/HRB500
Length  6m/9m/12m or as customer request
Tolerance±1%
Tensile strength300N/mm² , 360N/mm² , 435N/mm²
TechniqueHot Ribbed Steel Rebar
Price TermCIF CFR FOB EX-WORK
MOQ1 Ton
Payment Term30%T/T Advance + 70% Balance
PackingStandard Sea-worthy Packing
Type  Plate
CertificationISO,CE


Chemical Composition

CCuFeMnPSiS
0.25~0.2900.2098.01.030.0400.2800.050


Mechanical Behavior

A36ultimate tensile strengthTensile strength and yield strengthBreak Elongation (in 200mm)Break Elongation (in 50mm)modulus of elasticityVolume modulus (typical value of steel)Poisson ratiomodulus of shearing
the metric system400~550MPa250MPa20.0%23.0%200GPa140GPa0.26079.3GPa
British system58000~79800psi36300psi20.0%23.0%29000ksi20300ksi0.26011500ksi


Physical Property

physical propertythe metric systemBritish system
density7.85 g/cm30.284 lb/in3


Applied Range

Bolt, riveted or welded structures for bridges, construction and oil rigs, etc.

It is used for forming storage tanks, bin, bearing plate, fixture, ring, formwork, clamp, fixture, sprocket, cam, gear, bottom plate, forgings, decoration engineering, piles, supports, automobile and agricultural equipment, frame, mechanical parts, etc.


Peer Material

Guo Biao GBEuropean standard ENAmerican-Standard ASTMDe standard DIN, WNrday mark JISThe French standard, AFNORBS BSCanada HG
Q235BS235JRA283CSt37-2SM400AE24-240A/40B230G
Italy UNIIndia ISSwitzerland SSONORM, AustraliaNorway NSSpain UNEinternational standard ISOPortuguesa NP
Fe360BIS20621311/1312RSt360BNS12123AE235B-FNE235
